Description

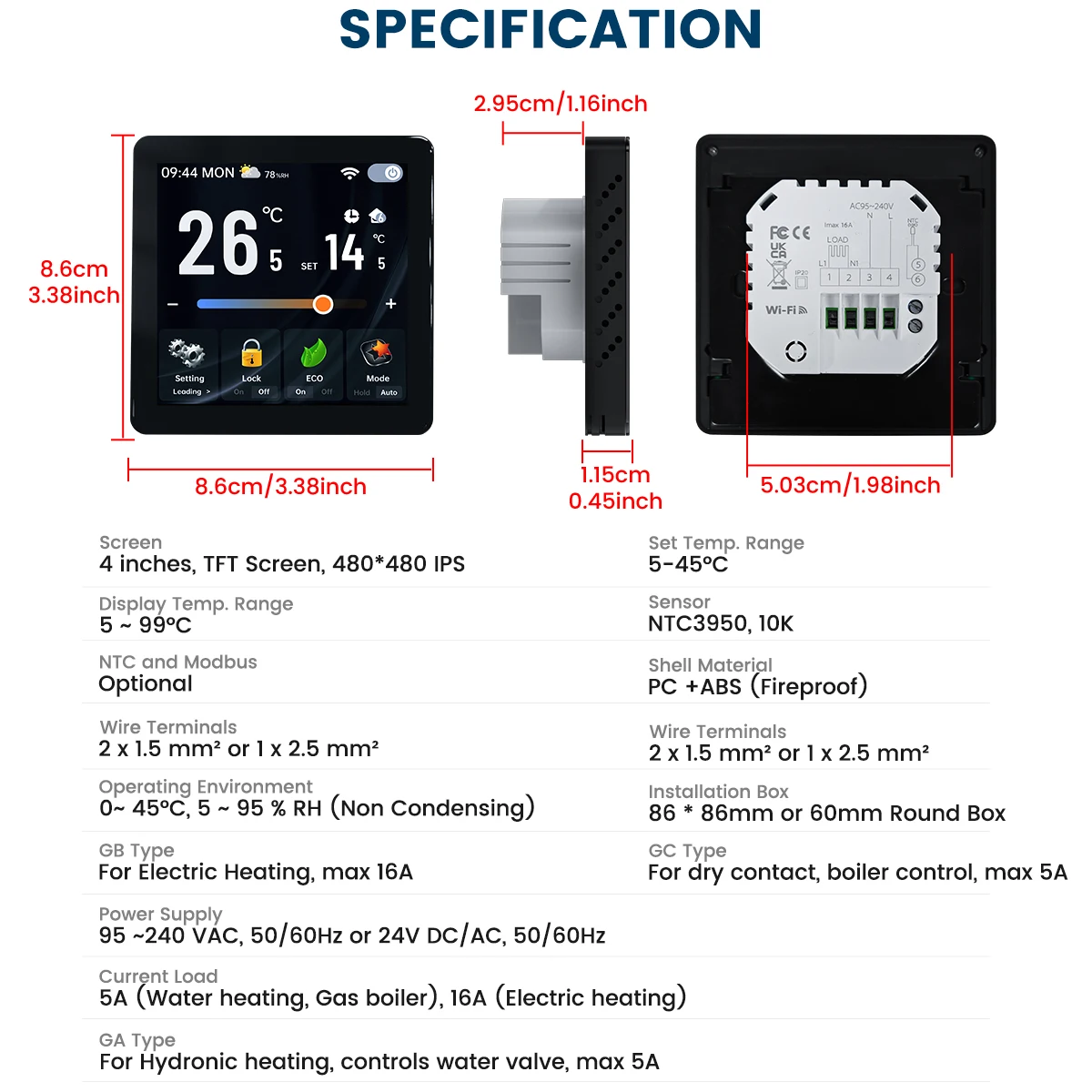

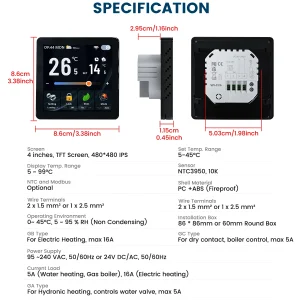

SPECIFICATIONS

Brand Name: GIRIER

Certification: CE,RoHS

Current Load: 5A (Water heating, Gas boiler), 16A (Electric heating)

Display Temp. Range: 5 ~ 99°C

GA Type: For Hydronic heating, controls water valve, max 5A

GB Type: For Electric Heating, max 16A

GC Type: For dry contact, boiler control, max 5A

Installation Box: 86 * 86mm Square or European 60mm Round Box

Model Number: Programmable Temperature Controller

NTC and Modbus: Optional

Operating Environment: 0~ 45°C, 5 ~ 95 % RH (Non Condensing)

Power Supply: 95 ~240 VAC, 50/60Hz or 24V DC/AC, 50/60Hz

Screen: 4 inches, TFT Screen, 480*480 IPS

Sensor: NTC3950, 10K

Set Temp. Range: 5-45°C

Shell Material: PC +ABS (Fireproof)

Wattage: NA

Wire Terminals: 2 x 1.5 mm² or 1 x 2.5 mm²
